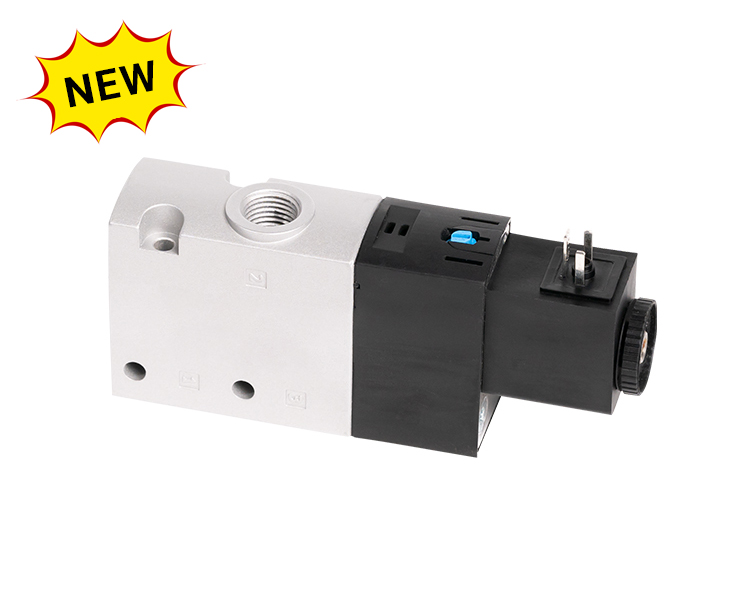

VMDB series solenoid valve

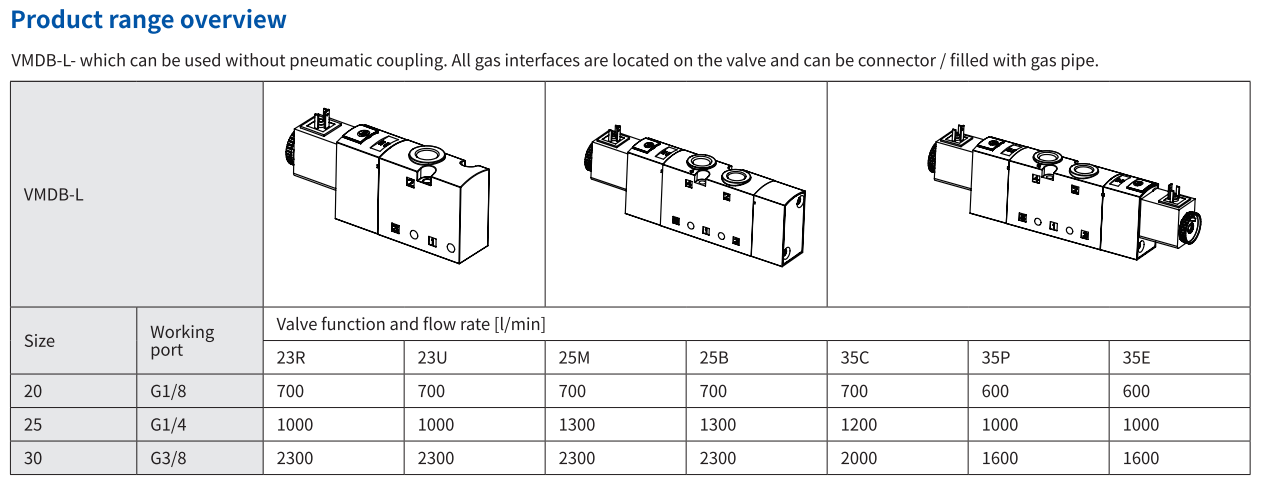

Specifications 20, 25, 30mm
? Multiple valve functions to meet various application requirements
? Easy to change the operating voltage by replacing the solenoid coil
? Flow up to 2300 I/min
Installation and usage instructions
1. Before use, pay attention to checking whether the components are damaged, and then install and use them.
2. During installation, please pay attention to whether the gas flow direction and connecting pipe are correct, and whether the voltage meets the requirements.
3. Please pay attention to dust prevention. It is recommended to install a muffler or noise reduction throttle valve at the air outlet.
4. When connecting the pipeline, pay attention to eliminating metal particles, dust, and oil stains in the pipe joint and inside the pipe
安裝與使用須知
1.使用前注意檢查元件是否損壞,然后安裝使用。
2.安裝時,請注意氣體流動方向及接管是否正確,電壓是否符合要求。
3.請注意防塵,建議氣口安裝消聲器或消聲節(jié)流閥。
4.連接管路時,并注意消除管接頭、管子內(nèi)的金屬顆粒、粉塵及油污等
