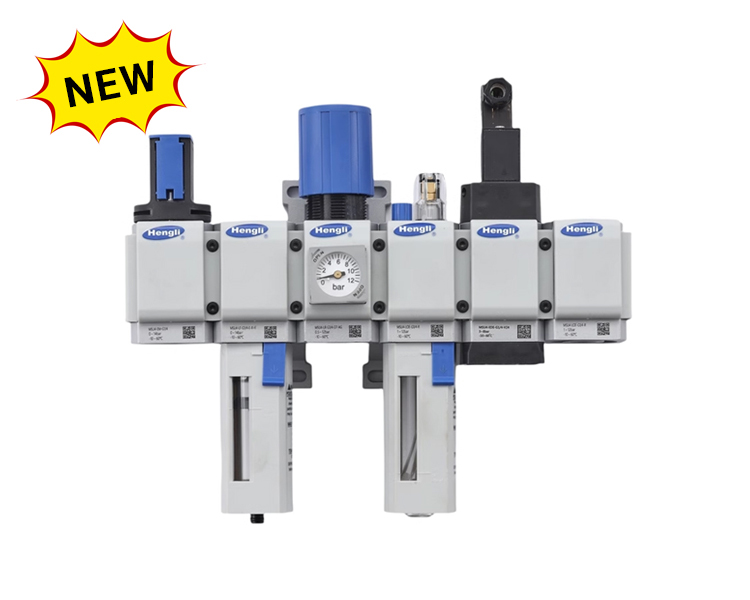

MSU Series

Product characteristics ? Good voltage regulation, low hysteresis
? Modular design for easy installation
? Diverse functions, compact structure, large flow rate
? Integrated security features
Functional symbol
Product specification
Order code
Installation and use





    Model numberBrief descriptionSpecificationAir coupling
    Quick plugInternal thread
    M G NPT
    Single device - filter decompression, water separation
    Filter pressure reducing valve MSU-LFR Technical parameter


    		Integrated filter and pressure reducing valve, filter grade 5 or 40 μm4--1/8, 1/4-
    6--3/8, 1/2-

    Filter MSU-LF


    		Filter grade 5 or 40 μm4--1/8, 1/4-
    6--3/8, 1/2-

    Individual equipment - pressure reduction, oil mist
    Reducing valve MSU-LR


    For setting the required working pressure, 4 pressure adjustments

    Scope.

    		4--1/8, 1/4-
    6--3/8, 1/2-

    Atomizer MSU-LOE


    		Add fuel to the air source, the amount is accurate and adjustable. The oil mist content is proportional to the gas flow rate.4--1/8, 1/4-
    6--3/8, 1/2-

    Model numberBrief descriptionSpecificationAir coupling
    Quick plugInternal thread
    M G NPT

    Single device - on/off valve, soft start

    On-off valve MSU-EM1



    Manual on-off valves for pressurization and exhaust of pneumatic devices.

    		4--1/8, 1/4-

    Soft start valve MSU-EDE


    Electrically controlled soft start valve for slowly pressurizing and venting pneumatic devices.

    		4--1/8, 1/4-

    Assembly

    Air source treatment unit combination MSU4/6-FRC1


    Combination of filter, pressure reducing valve and oil mist.

    		4--1/8, 1/4-
    6--3/8, 1/2-

    Air source treatment unit combination MSU4/6-FRC2


    		Filter pressure relief and oil mist combination.4--1/8, 1/4-
    6--3/8, 1/2-

    [Note] The order of the individual elements in the air source handling device is related to safety and functionality, and the following rules need to be followed:

    ? In the direction of the air flow, only pressure reducing valves with the same or smaller pressure adjustment range are allowed

    ? In the direction of air flow, the oil mist MSU-LOE is not allowed to line up upstream of filters, water separators or diaphragm air dryers

    ? The flow sensor cannot be installed directly downstream of the pressure reducing valve; A branch module must be installed between the two

    ? In the airflow direction, the quick exhaust valve must be the last air source handling element

    MSU 4LF1/85----P
    Air source treatment unit combination ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
    ①  Module width4：40，6：62
    ②  FilterLF
    ③  Air coupling1/8: internal thread G1/8; 1/4: internal thread G1/4; 3/8: Internal thread G3/8; 1/2: internal thread G1/2
    ④  Filtration grade5:5μm；40：40μm
    ⑤  Drainage modeM= manual drainage; H= semi-automatic drainage
    ⑥  Filter cup-= Plastic filter cup
    ⑦  Installation mode

    -= Without mounting bracket; WR= mounting bracket, pressure reducing valve handle with knurled nut; WP= Basic mounting bracket

    ⑧  Airflow direction-= from left to right; Z= from right to left
    ⑨  Protective cover

    P= plastic protective cover; M= metal protective cover

    MSU 4LR1/8---
    Air source treatment unit combination ① ② ③ ④ ⑤ ⑥
    ①  Module width4：40，6：62
    ②  Reducing valveLR
    ③  Air coupling1/8: internal thread G1/8; 1/4: internal thread G1/4; 3/8: Internal thread G3/8; 1/2: internal thread G1/2
    ④  Voltage regulation rangeBasic type0.5-1.2bar
    ⑤  Installation mode-= Without mounting bracket; WR= mounting bracket, pressure reducing valve handle with knurled nut; WP= Basic mounting bracket
    ⑥  Airflow direction-= from left to right; Z= from right to left


    MSU 4LOE1/8---
    Air source treatment unit combination ① ② ③ ④ ⑤ ⑥
    ①  Module width4：40，6：62
    ②  AtomizerLOE
    ③  Air coupling1/8: internal thread G1/8; 1/4: internal thread G1/4; 3/8: Internal thread G3/8; 1/2: internal thread G1/2
    ④  Protective cover-= Plastic filter cup protective cover
    ⑤  Installation mode-= No support is required; ; WP= Mounting bracket, basic type
    ⑥  Airflow direction-= from left to right; Z= from right to left
    MSU 4EM11/8---
    Air source treatment unit combination ① ② ③ ④ ⑤ ⑥
    ①  Module width4：40，6：62
    ②  Hand switch valveEM1
    ③  Air coupling1/8: internal thread G1/8; 1/4: internal thread G1/4; 3/8: Internal thread G3/8; 1/2: internal thread G1/2
    ④  Suppressor-: no silencer; m: With a muffler
    ⑤  Airflow direction-= from left to right; Z= from right to left
    ⑥  Installation mode-= No support is required; ; WP= Mounting bracket, basic type
    MSU 4EDE1/4248
    Air source treatment unit combination ① ② ③ ④ ⑤
    ①  Module width4：40mm，6：62mm
    ②  Electronic switch valve with soft start moduleEDE
    ③  Air coupling1/4: internal thread G1/4; 1/2: internal thread G1/2
    ④  Supply voltage24:24VDC(DIN43650C)
    ⑤  Derived typeB=Basic type


    MSU 41/4FRC1-J1-
    Air source treatment unit combination ① ② ③ ④ ⑤ ⑥
    ①  Module width4：40mm，6：62mm
    ②  Air coupling1/8: internal thread G1/8; 1/4: internal thread G1/4; 3/8: Internal thread G3/8; 1/2: internal thread G1/2
    ③  AssemblyFRC1:: Filter, pressure reducing valve and oil mist; FRC2: Filter pressure reducing valve and oil mist
    ④  Drainage mode-= Semi-automatic drainage (manual drainage)
    ⑤  Air source handling element is equippedJ1Filter accuracy 40μm, plastic filter cup, semi-automatic condensate discharge device, pressure range 0.5~12bar, can lock the rotating handle
    J2Filter accuracy 5μm, plastic filter cup, semi-automatic condensate discharge device, pressure range 0.5~12bar, can lock the rotating handle
    ⑥  Airflow direction-= from left to right; Z= from right to left
