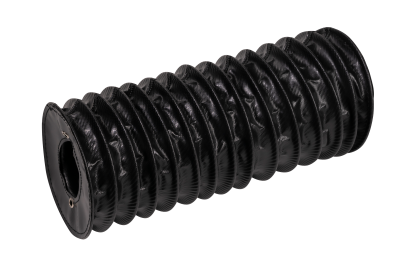

Product characteristics Protect the cylinder (piston rod, seals, and bearings) from various media invasion and prevent premature wear

File download

PDF

Functional symbol

Product specification

Order code

Installation and use

General technical parameters
Type FCZ-	Technical characteristics	32	40	50	63	80	100
	Stroke [mm]	10 ... 500	10 ... 500	10 ... 500	10 ... 500	10 ... 500	10 ... 500
	Material / tolerance temperature	Rubber woven cloth：–30 ℃~120℃ Enhance the nylon cloth：-40℃~145℃ High temperature canvas：-30℃~210℃ Silicon gel coated glass fiber cloth：-30℃~1100℃；
	Medium tolerance	Dust, debris, oil, grease, fuel oil, etc
	Type of mounting	By holding the hoop
	Mounting position	Pole end
	levels of protection	IP54
	Corrosion resistance grade	3
